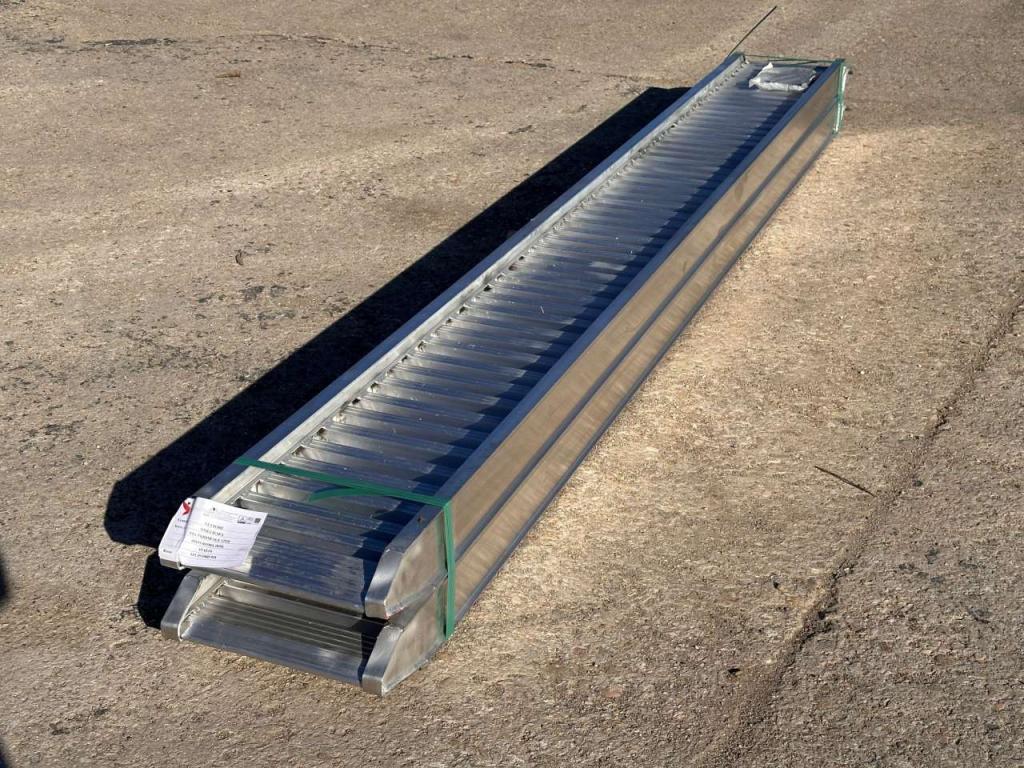

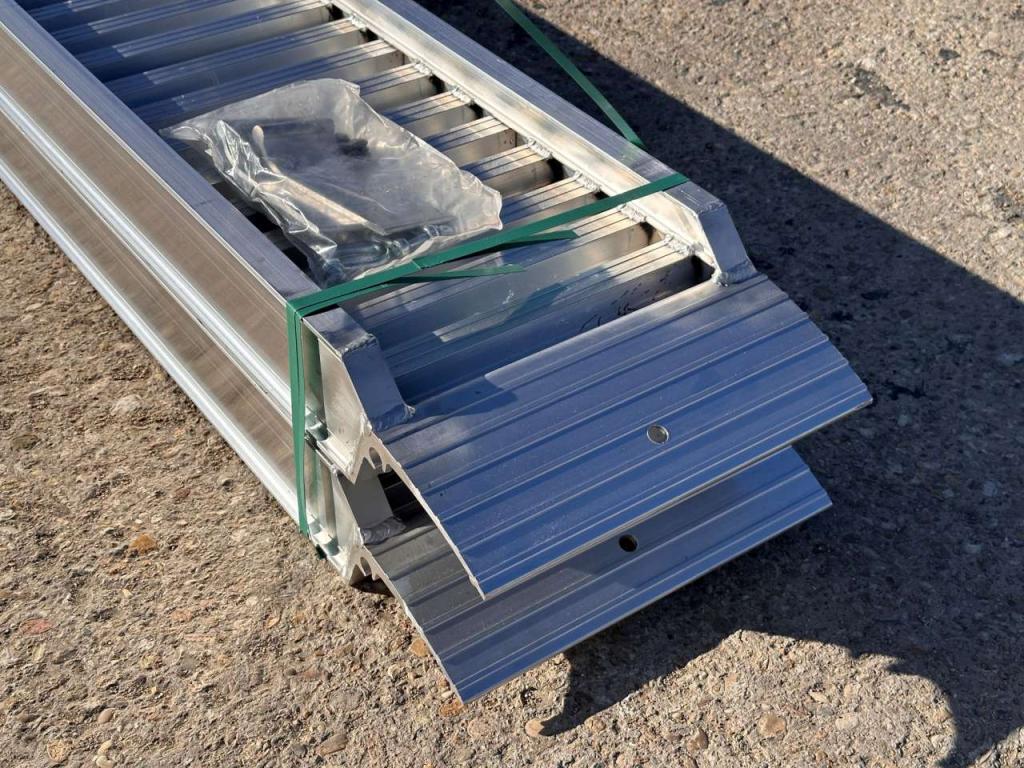

Definitive CLM 100.35

Sale or rental of ramps with load capacities ranging from 1,000 to 10,000 kg

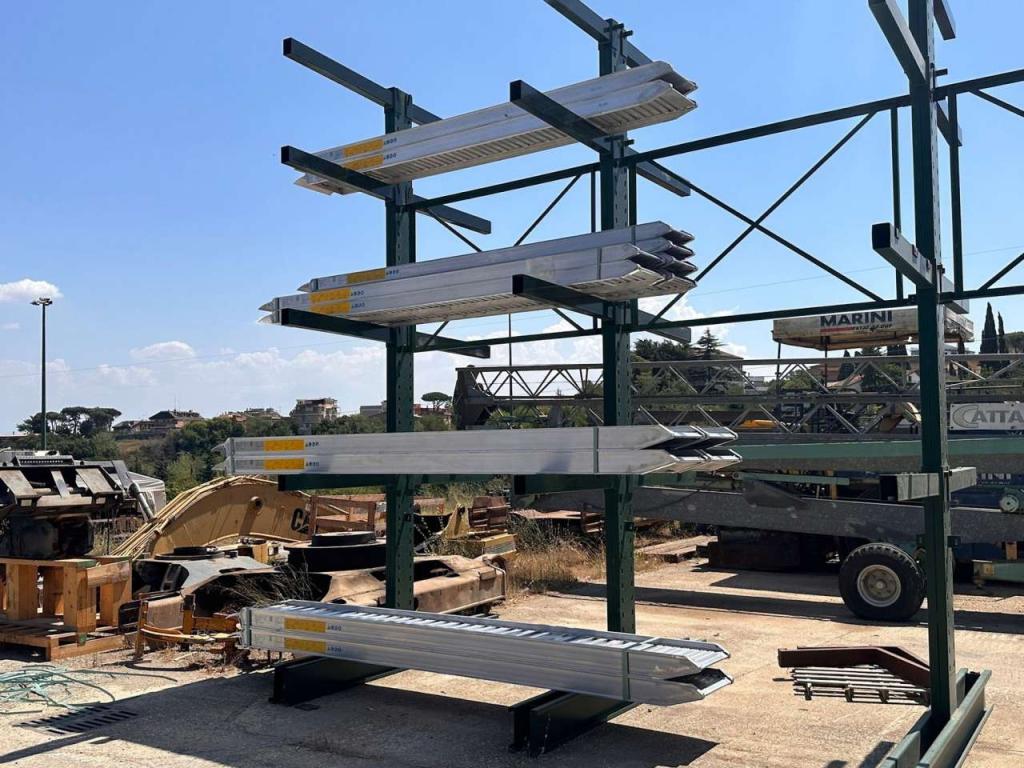

We always have the 2,300, 4,100, and 6,500 kg models in stock and ready for immediate delivery
The price shown refers to model 100.35 (pair of 2 ramps) with a 2,300 kg capacity: € 800 + VAT
Shipping within Italy: €60 + VAT per pair
NOTE: Ramps for mini excavators with rubber tracks or machines with pneumatic tires; for other types of ramps, please inquire


Model 100.35, load capacity per pair 2,300 kg *€ 800 + VAT per pair*
-Length 3.5 meters
- Weight per ramp 25 kg
- Maximum load capacity with 1-meter, 1.5-meter, and 2.0-meter spans: 1,800 - 2,050 - 2,300 kg
- Internal width 300 mm, external width 360 mm
- 2 pairs available in stock

Model 125-35, load capacity per pair 3,700 kg, €990 + VAT per pair
- Length 3.5 meters
- Weight per ramp 35 kg
- Maximum load capacity with 1 - 1.5 - 2.0 meter spacing: 3,450 - 4,000 - 4,400 kg
- Internal width 350 mm, external width 410 mm
- 2 sets available in stock


Model 125-40, load capacity per pair 3,700 kg, €1,200 + VAT per pair
-Length 4 meters
- Weight per ramp 40 kg
- Maximum load capacity with 1-meter, 1.5-meter, and 2.0-meter spans: 2,850 - 3,250 - 3,700 kg
- Internal width 350 mm, external width 410 mm
- 2 sets available in stock

Model 140.40, load capacity per set 4,100 kg *€1,225 + VAT per set*
- Length 4 meters
- Weight per ramp 46 kg
- Maximum load capacity with 1 - 1.5 - 2.0 meter spacing: 3,200 - 3,600 - 4,100 kg
- Internal width 400 mm, external width 460 mm
- 2 sets available in stock

Model 148 40, load capacity per pair 6,450 kg *€1,460 + VAT per pair*
-Length 4 meters
- Weight per ramp 53 kg
- Maximum load capacity with pitch 1 - 1.5 - 2.0 meters 3,950 - 4,500 - 5,150 kg
- Internal width 400 mm, external width 450 mm
- 1 pair available in stock

Model 168 40, load capacity per pair 6,800 kg *€1,920 + VAT per pair*
-Length 4 meters
- Weight per ramp 58 kg
- Maximum load capacity
